SPECT

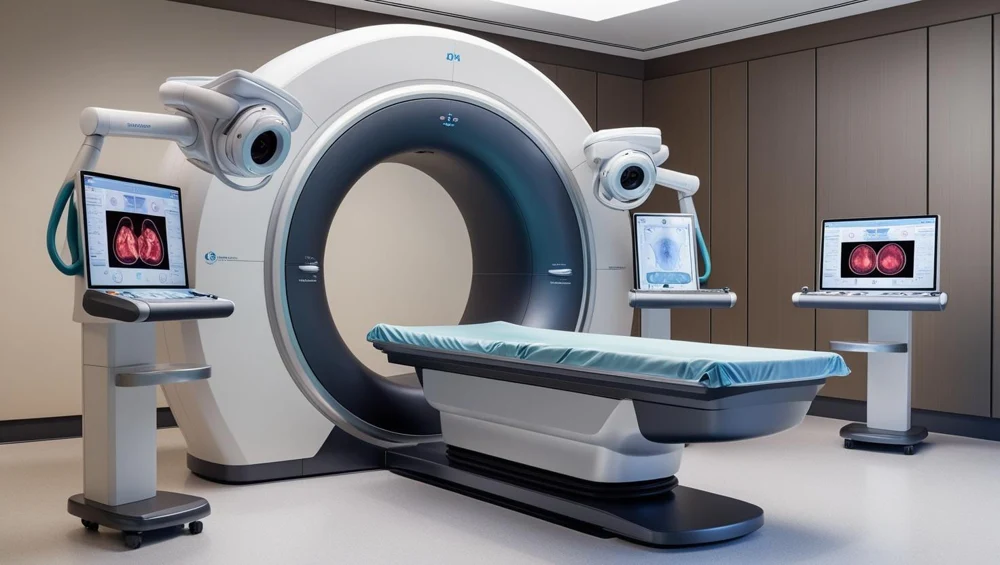

A gamma camera on a rotating gantry. Two detector heads orbit the patient and record where photons left the body, from enough directions to reconstruct a volume.

Also called: Single Photon Emission, Gamma Camera. Arabic: التصوير المقطعي بإصدار الفوتون المفرد. Device Lab 5 of 69 in BMEssentia Medical City, 2 configurations.

Overview: the configurations

Dual-head variable-angle SPECT

A gamma camera on a rotating gantry. Two detector heads orbit the patient and record where photons left the body, from enough directions to reconstruct a volume.

SPECT/CT with attenuation correction

The same gamma camera with a low-dose CT behind it on the same axis. The CT measures how much each path through the patient attenuates, and the reconstruction uses that rather than assuming it.

How it works: the main parts

What each part does, from the SPECT lessons in the 3D Device Lab.

Collimator: A slab of lead drilled with tens of thousands of parallel holes, bolted to the face of the detector head. It weighs between eighty and two hundred kilograms, it is changed by hand on a trolley, and it throws away more than ninety-nine point nine per cent of everything that reaches it.
Scintillation crystal: A single sheet of sodium iodide about 540 by 400 millimetres and under a centimetre thick, sealed behind a thin aluminium window. It is the point at which a gamma photon stops being radiation and becomes light.
Light guide: A slab of optically clear material between the crystal and the photomultipliers, doing something that sounds like a mistake: deliberately spreading the light out.
Photomultiplier array: Around fifty tubes in a hexagonal close packing behind the light guide, each one turning a few hundred photons of visible light into a measurable pulse of current.
Detector head shielding: The lead that surrounds everything except the collimator face. A detector head weighing four hundred kilograms is mostly this.
Position and energy electronics: The boards immediately behind the tubes that turn a set of simultaneous pulses into three numbers: x, y, and how much energy the event deposited.
Pulse height analyser: The circuit that looks at each event’s energy and decides whether it is counted or discarded. On a typical technetium study it throws away most of what reaches it.
Acquisition computer: The computer that records accepted events and assembles them into projections. On a tomographic study it is also what tells the gantry when to move.

Explore it in the Device Lab

Resolution and sensitivity are the same dial: Change the collimator and watch two numbers move in opposite directions, every time, without exception. Longer, narrower holes accept a narrower range of directions, so the image resolves better and fewer photons get through. Shorter, wider holes accept more, so the count rate rises and the resolution falls.
The free control nobody writes down: Resolution at the object falls off with distance from the collimator face, roughly linearly, because the cone of directions a hole accepts widens with distance. Move a head from 250 mm to 150 mm from the axis and the system resolution improves by about a third.
Energy is a direction test in disguise: The camera measures how much energy each photon had, and it does so to find out whether the position it just recorded is a lie.
Counts you cannot get back: Set the delay between injection and imaging to six hours and watch what is left. For technetium-99m, with a six-hour half-life, about half. Those counts are not delayed; they are gone, and noise rises as the square root of what remains.
The quantity the camera cannot measure: Put a source eighty millimetres inside a body of soft tissue and count what comes out. Roughly a third of what was emitted. Put the same source near the surface and almost all of it arrives.

Common faults and what to check

Most reported device problems (FDA MAUDE)

Device problem	Reports
Nonstandard Device	89
Unintended System Motion	81
Loose or Intermittent Connection	74
Component Falling	73
Device Operates Differently Than Expected	56
Mechanical Problem	53

Raw counts of adverse event reports for this device type (FDA product code KPS), all years. Not adjusted for the number of units in use, so they show what gets reported, not failure rates. Report text is never copied.

Planned maintenance checks

From the BMEssentia procedure library: every 12 months, about 180 minutes, electrical class I, applied part type B.

Check	Pass when
Heads, collimators and table Inspect the detector heads, collimators (dents), touch sensors and the table.	No collimator damage; touch sensors stop motion.
Electrical safety Test to IEC 62353.	Within limits.
Uniformity, energy and centre of rotation Acquire floods, check the energy peak and run the centre-of-rotation test.	Within the manufacturer's limits.

Test instruments: Point source or flood source (per manufacturer); Phantoms for uniformity and resolution; Dose calibrator.
