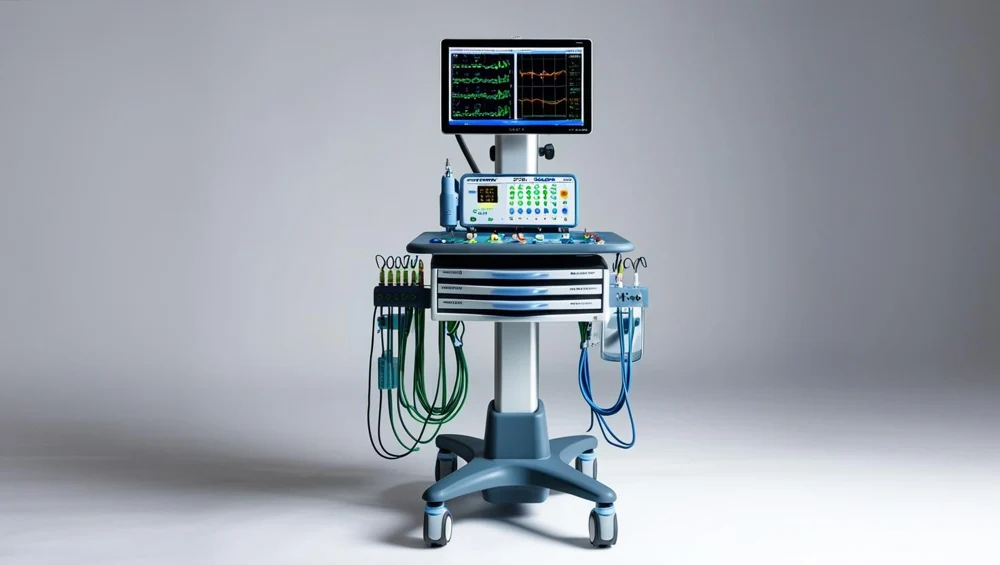

IONM

A peripheral nerve is stimulated with a short constant-current pulse a few times a second, and the response is recorded from a scalp electrode pair against a reference. The response is about two microvolts and the ongoing activity it sits inside is about twelve, so nothing on the trace of a single sweep resembles a response at all. Hundreds of sweeps are averaged, a control channel closer to the stimulus confirms that the stimulus arrived, and contaminated sweeps are thrown away rather than averaged.

Also called: Intraoperative Neuromonitoring, Intraoperative Neurophysiological Monitoring. Arabic: المراقبة العصبية أثناء الجراحة. Device Lab 14 of 69 in BMEssentia Medical City, 2 configurations.

Overview: the configurations

How it works: the main parts

What each part does, from the IONM lessons in the 3D Device Lab.

Patient headbox and its numbered inputs

A small moulded box on a stand up by the patient, about the size of a paperback, with thirty-two numbered and colour-coded sockets in four rows across its face, one green socket on its own at the bottom, and a single thick connector on the end where everything leaves for the machine. It is the only part of this system anybody handles once an operation has started.

Electrode leads, their routing and the loop they enclose

Thirty-two fine insulated wires, each a different colour, running from an electrode on the patient to a socket on the headbox, gathered part way along into a loose bundle. Then one much thicker cable, the trunk, carrying all of them from the headbox down to the machine along a mat on the floor.

Electrode impedance meter and the imbalance it is looking for

A small module on the worktop with a two-line readout and a single test button, plus a row of indicators on the headbox itself so somebody at the patient can read the result without walking away. Pressing the button injects a tiny alternating current through each electrode in turn and reports what it took to do it.

Isolated differential biopotential amplifier

A shallow chassis on the cart shelf with one heavy connector on the front where the trunk cable plugs in, and inside it one amplifying stage per recording channel. It is the first thing in this machine that does anything to the signal, and the signal reaching it is a few microvolts.

Bandpass filter, and the notch that should not be used

A module inside the chassis with no controls on it, and one key on the front panel that switches in a narrow rejection at mains frequency. The key is there because somebody has to be able to reach it, and it carries a warning because they should not.

Sampling, anti-alias and the sweep window

A converter and its clock inside the chassis, and a legend on the front panel giving the sampling rate and the length of the recording window. Everything after this point in the machine is numbers, and everything before it is voltage.

Isolated stimulus generator and its compliance limit

A separate box on the shelf beside the chassis with two output ports on its face, a small readout, and a legend saying which quantity it holds constant. It is the only part of this machine that puts energy into the patient, and it is isolated from everything else for that reason.

Stimulus trigger, and why an average needs an exact one

A thin cable between the stimulus generator and the recording chassis, a plug at each end, and one small indicator on the front panel. It carries no signal from the patient and no information about anything except an instant.

Explore it in the Device Lab

• The square root, and the time it is really a statement about: Hold everything else still and change only the number of recordings. Read the ratio the average achieves and the seconds it took to get there.
• The one interferer averaging cannot touch: Set the stimulus rate so that the mains frequency divides by it exactly, and average as many recordings as you like. Then move the rate by a fraction of a hertz and average the same number.
• The electrodes are the rejection, not the amplifier: Leave the amplifier alone and change only the difference between the two electrode impedances in a pair. Read how much of a common-mode interfering voltage arrives as apparent signal.
• The area two wires enclose, and why no amplifier helps: Measure the length of the trunk run and the separation between its two conductors, and multiply. That is the area a changing field sees. Then compute the induced voltage from it and compare against the response the channel is trying to record.
• What a discarded recording costs, in seconds: Set the fraction of recordings being discarded and read the time to a trustworthy answer. Then set it to three quarters and read it again.

Common faults and what to check

Most reported device problems (FDA MAUDE)

Raw counts of adverse event reports for this device type (FDA product code GWF, ETN), all years. Not adjusted for the number of units in use, so they show what gets reported, not failure rates. Report text is never copied.

Planned maintenance checks

From the BMEssentia procedure library: every 12 months, about 90 minutes, electrical class I, applied part type BF.

Test instruments: Multi-channel simulator; Electrical safety analyser; Stimulator load.

Recent FDA recalls

From the FDA recall database (openFDA), newest first, imported 2026-10-22. 48 recalls on record for this device type. Recall text is the FDA's public text; each recall links to the official record.
