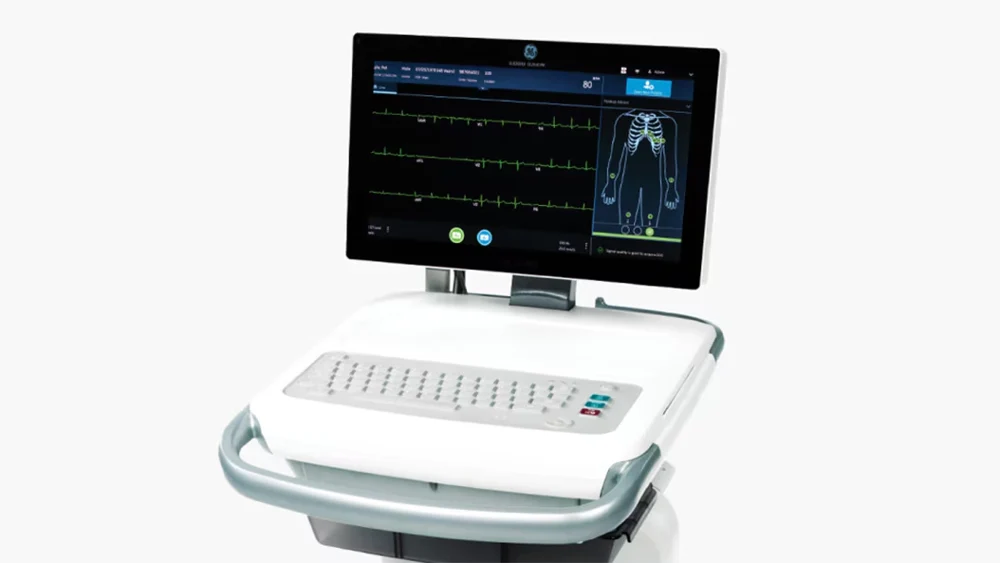

ECG

Ten electrodes: one on each limb and six across the chest, every one of them found from bony landmarks by whoever is recording. The four limb electrodes go at the wrists and ankles. Nine of the ten become node potentials and the tenth appears in no lead definition at all, so twelve traces are computed from eight independent measurements.

Also called: Ekg, Electrocardiograph, 12-Lead. Arabic: جهاز تخطيط القلب الكهربائي. Device Lab 39 of 69 in BMEssentia Medical City, 2 configurations.

Overview: the configurations

How it works: the main parts

What each part does, from the ECG lessons in the 3D Device Lab.

Disposable pre-gelled electrode, its element and its contact

Ten small foam discs on a peel-off strip, each a few centimetres across, each with a metal stud moulded through its back and a bead of wet gel in a shallow well on its front. Tilt the strip and the gel moves.

Lead wires, the colour code and the yoke

Ten slim coloured wires, each ending in a clip or a stud socket, each printed with a position name, gathered at a moulded yoke where they all leave for the trunk cable. The colours are the only thing distinguishing one from another once they are on a body.

Patient trunk cable, its screen and its connector

One thick cable a couple of metres long, a moulded keyed connector at the instrument end and the lead wire yoke at the other, with a drape hook part way along. It is the heaviest flexible thing on the machine and the one most often replaced.

The right-leg electrode, which appears in no lead at all

One disc exactly like the other nine, low on the right side, with a wire in the odd colour out. On the front panel it has an indicator of its own next to the others, and on the twelve panes it has nothing.

Defibrillation protection and input current limiting

Immediately behind the patient connector, a row of ten identical little networks on the acquisition board, each a resistor and a clamping device, with nothing to adjust and no indicator. In ordinary use none of it does anything at all.

Acquisition module and the input multiplexer

A shielded box behind the patient connector with the ten protected inputs entering one face and a digital ribbon leaving the other. There is nothing to adjust on it and a legend on the lid giving the band and the sample rate for each configuration.

Wilson central terminal network, and the average nobody measured

Three identical resistors on the acquisition board, sitting side by side, with one end of each going to a limb input and the other ends joined at a single point. A single track leaves that point and goes to every one of the precordial difference stages.

Differential amplifier and the electrode offset it must survive

One instrumentation stage per lead on the acquisition board, a row of identical small packages with no adjustment brought out anywhere on the outside of the instrument. There is nothing on the front panel that changes the gain.

Explore it in the Device Lab

• Move the lower corner, watch a feature appear: Hold the illustrative complex and everything else still, and change only the lower corner. Read the baseline displacement immediately after the deflection.
• Integrate the output and find out why the feature had to exist: Change nothing but the length of the window you integrate over, and watch the total area under the filtered output.
• Move the same corner again, and watch the wander instead: Leave the complex alone. Set a baseline drift of an illustrative one millivolt per second, which is a declared bench control rather than a measurement of anybody, and read the steady output at each corner.
• Move the upper corner, watch amplitude leave: Hold the illustrative upstroke at twenty milliseconds and change only the upper corner. Read the height the apex reaches as a fraction of what went in.
• Delete a channel and ask the rank what it cost: Turn off displayed traces one at a time, in any order, and read the rank of what is left.
