Skin Resurfacing Laser

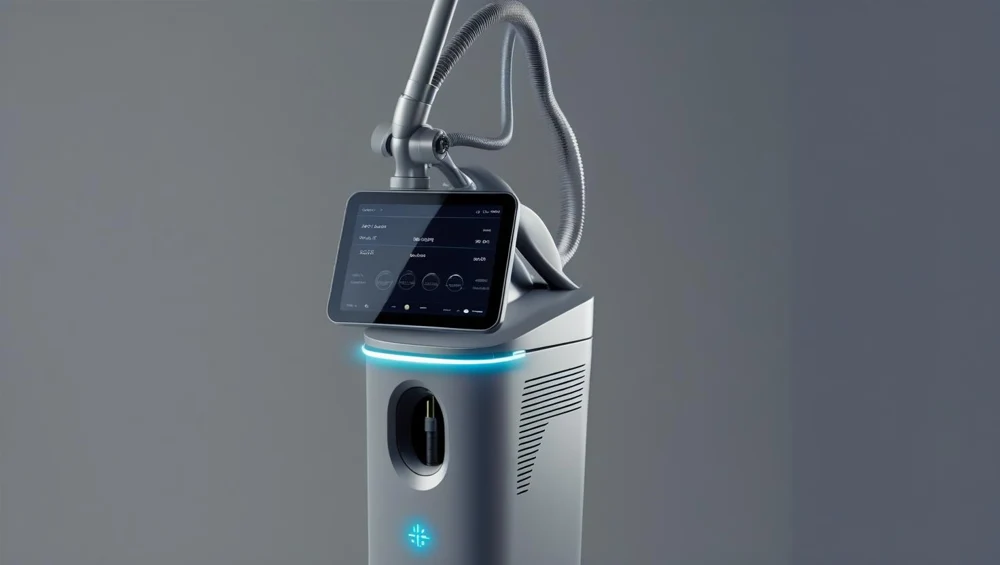

6 µm, a seven-mirror counterbalanced articulated arm because silica fibre does not transmit that wavelength, a galvanometer scanner that writes a lattice of microbeams into the field, a disposable standoff spacer that fixes the working distance and therefore the spot, and a plume evacuator whose hose is clipped to the handpiece. The stratum corneum inside each column is vaporised and leaves.

Also called: Co2 Laser. Arabic: ليزر تجديد سطح الجلد. Device Lab 49 of 69 in BMEssentia Medical City, 2 configurations.

Overview: the configurations

How it works: the main parts

What each part does, from the Skin Resurfacing Laser lessons in the 3D Device Lab.

Mains inlet, key switch, remote interlock connector and emergency stop

At the bottom rear of the console, a filtered inlet module with a fuse carrier and a protective earth stud. On the fascia, three controls: a barrel key switch, a screw-collar socket for a remote loop that runs out of the room, and a mushroom head on a red plate.

Closed-loop coolant circuit, heat exchanger and flow switch

On the lower shelf of the cart, a reservoir, a pump, a run of reinforced hose, a finned heat exchanger with a fan behind the vented rear panel, and one small brass body in the return line with two wires coming out of it. The last of those is the only part of the circuit that the emission chain can hear.

Internal energy monitor and closed-loop pulse control

A small optic that takes a known, tiny fraction of the beam off its path before it leaves the console, and a detector behind it on a board with a fast integrator. Its whole output is a number per pulse, and that number is the only evidence the machine has that what it asked for is what it made.

Mechanical safety shutter and internal beam stop

A blade on a rotary solenoid at the last aperture inside the console, and behind it, off to one side, a small block of absorbing material with fins on it. When the blade is across the aperture the beam does not stop existing; it lands on the block instead.

Galvanometer scanner and the microbeam pattern it writes

Two small mirrors on two torque motors, at right angles to one another, each with a position sensor on the shaft. Between them they can put the beam anywhere in a square field without anything else moving.

Treatment handpiece, focusing optic and its cradle

A shaped body you can hold in one hand, with a lens assembly in its nose, a keyed mount at the back for the delivery path, a bayonet at the front for a disposable spacer, and a moulded cradle on the right cheek of the console where it lives when it is not held. Inside it, one optic sets the single number every thermal argument here is built on.

Disposable standoff spacer and its optical window

A short moulded tube that clips onto the nose of the handpiece, with a flat window across its end and a rim that touches the skin. It is the cheapest part on the device, it is thrown away after one use, and it is the part that decides where the focal plane lands.

Visible aiming beam and its coaxiality

A low-power visible diode inside the console, its output combined onto the working path so that the two travel together, and a mark it leaves on the surface. On this device it is not an accessory.

Explore it in the Device Lab

• The pulse you are allowed, and why it is a square law: Change only the spot diameter on the focusing optic and recompute the relaxation time of the column it writes. Then change only the pulse duration and watch which side of that time you are on.
• The bridge that decides the density, with no time in the geometry: Hold the spot diameter and the count per cm² fixed. Change only the pulse duration, and compute the bridge you need rather than the bridge you have.
• Two absorption depths, and which dimension is left to do the work: Take the two published absorption coefficients of water and do nothing but divide. 24 µm. 4 µm.
• A threshold with nothing fitted in it: Build the threshold from enthalpy and refuse to fit anything. 5205×10⁹ J/m³. 160 J/cm² at a declared 70 % hydration, which is ILLUSTRATIVE.
• Where each wavelength stops inside an eye, from the same two numbers: Do not look up a hazard class. Take the two absorption depths already derived and ask where each one runs out inside an eye, using only the thickness of the tissue in front of it.
• Why one configuration can set fire to a drape and the other cannot: Compare the two configurations at the SAME radiant exposure and ask only what happens in the first few micrometres of whatever the beam lands on.
